Best Golf Simulator for a 9 Foot Ceiling (2026): What Fits

By Evan Reid, with research from the HPG Research Team · Updated Oct. 15, 2026

Nine feet of headroom can still hold a full simulator bay in a basement or garage, and the makers' own figures point to the best golf simulator for a 9 foot ceiling.

The Bushnell Launch Pro Simulator Bundle, 10' is our pick for that ceiling in a room at least 12 by 18 feet, Bushnell's minimum. One order brings the launch monitor, enclosure, mat and projector, at $6,499.99 as of October 5, 2026.

Two lines change how you buy it. Bushnell's banner says "FREE 30-DAY RETURNS," but its returns page says the net, mat, frame, screen and projector can't go back, so get the room right before you order. And Foresight, whose software runs the Launch Pro, calls 10 feet the practical minimum for a comfortable full driver swing for most golfers, so measure your swing too.

We read eight makers' room figures from September 23 to October 5, 2026; where two documents disagree, you'll see both.

Below: what fits under 9 feet first, then each pick with what it costs and what to confirm before you order.

Can you have a golf simulator with a 9 foot ceiling?

Yes, with the right launch monitor and enclosure. The products in the first table clear a 9 foot (108 inch) ceiling on their makers' own published figures, and the second table lists the ones that don't.

Width and depth matter as much as height. Bushnell's bundles need 18 feet of depth, SkyTrak's Studio 10' needs 16, and Garmin's R10 needs 15. A room that clears the ceiling can still come up short at the back wall, so take all three numbers before you shortlist anything. If the back wall is your short number, our guide to the best launch monitor for a small space sorts 11 launch monitors by where each one sits: behind the ball, beside it or overhead.

Prices are as of October 5, 2026. "Sale running" means a sale was running when we checked, and the price shown is the regular price.

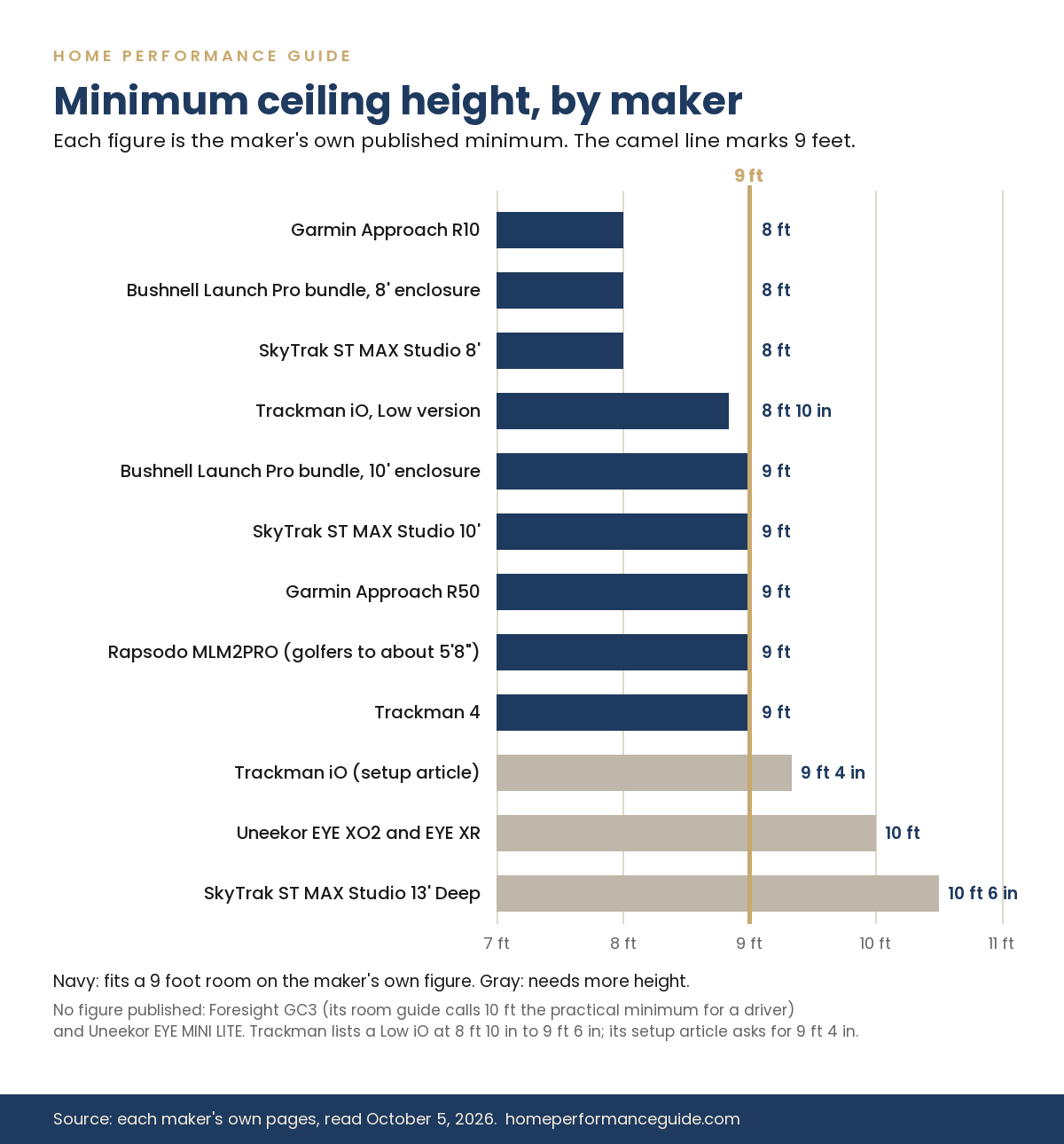

Find your product in the first column, then check its ceiling figure against the lowest point over your swing and its width and depth against your floor.

On a phone, swipe the tables to see all four columns.

Fits a 9 ft room	Maker's ceiling figure	Width and depth the maker lists	Price as of Oct. 5, 2026
Bushnell Launch Pro Simulator Bundle, 10'	9' minimum (bundle page)	12' wide, 18' deep	$6,499.99
Bushnell Launch Pro Simulator Bundle, 8'	8' minimum (bundle page)	10' wide, 18' deep	$6,499.99
Bushnell Launch Pro, monitor only	"Recommended: 18ft x 12ft x 9ft" for a full simulator (buyer's guide)	12' wide, 18' deep, recommended	$2,999.99
SkyTrak ST MAX Standard Studio 10'	9' minimum (Plan Your Space page)	11' wide, 16' deep	$5,495, sale running
SkyTrak ST MAX Standard Studio 8'	8' minimum; the same block says a golfer needs 9 feet for a driver	8.5' wide, 15' deep	$5,495, sale running
Garmin Approach R10	"8 feet high" (support page)	8 feet wide, 15 feet long	$499.99
Garmin Approach R50	"9 feet or more" (support page)	10 feet wide, 13 for both hands; 8 feet or more to the net	$4,999.99
Rapsodo MLM2PRO	9 feet "might be perfect" for golfers "about 5' 8" and below" (Rapsodo blog)	8 feet to the net plus 6.5 to 8.5 feet behind the ball	$699.99, sale running
Carl's Place DIY enclosure kit: 7.7x10, 7.7x13, 8x8, 8x10.5	Frames 95.8 or 100 in tall, plus a 2 to 3 in buffer (spec sheet, sizing guide)	Stand 10 to 12 feet from the screen	$999.95 to $1,239.95 with the Standard screen
Carl's Place Pro enclosure kit, 8x10.5 only	Frame 102 in tall, plus at least 2 in above (spec sheet, Pro page)	Frame 132.4 in wide	$3,409.95 to $4,174.95

The second table runs the other way, and its third column shows why each one misses a 9 foot room, and by how much where the maker gives a figure.

Doesn't fit a 9 ft room	Maker's figure	Why it misses	Price as of Oct. 5, 2026
Trackman iO Mid and High versions, and iO DUO	"The minimum room height should be 9 feet 4 inches" (setup article); Mid 9'4" to 10', High 9'10" to 10'6" (height article)	4 in short or more; Trackman's Low iO (8'10" to 9'6", iO only) takes in a 9 ft room	Home solutions "starting at USD 13,995"
Uneekor EYE XO2 and EYE XR	"13 ft wide × 16 ft deep × 10 ft high" (product pages)	12 in short on the product-page figure	XO2 $10,999; XR $6,999, sale running
Uneekor EYE MINI LITE	No ceiling figure published	Uneekor's general room advice is 10 ft	$2,750, sale running
Foresight GC3	No ceiling figure for the unit	Foresight's room guide calls 10 feet the practical minimum for a driver	$6,999
Carl's Place Curved enclosure kit, standard sizes	Smallest frame 108 in tall, plus 6 in above (spec sheet, FAQ)	Needs about 9'6", by our arithmetic	From $4,894.95
SkyTrak ST MAX Studio 13' Deep	"10' 6" H" minimum	18 in short	$5,995, sale running

Carl's Place kits are enclosures only, so each one pairs with a floor launch monitor from the first table. Carl's larger standard sizes miss a 9 foot room too. The DIY 8.5x11.5 and 9x12 frames are 107.5 and 112 inches tall, and every Pro size above 8x10.5 is 107 to 123 inches, before Carl's buffer. Our golf simulator room size guide covers width and depth for more launch monitors.

Say your garage is 9 feet to the ceiling, but the opener rail hangs at 8 feet 6 inches where you'll swing. Where it hangs, the rail is your ceiling, which rules out the 10' bundle and SkyTrak's Studio 10' at 9 feet each. Bushnell's 8' bundle lists an 8' minimum and Garmin's R10 asks for 8 feet high, so both still pass on their makers' figures. Foresight rates 8.5 feet for irons only and SkyTrak's driver line asks for 9, so chalk your driver swing under the rail.

Checkpoint: the lowest point over your swing. Measure from the hitting surface to the lowest thing overhead, joists, ducts, lights and rails included. If it reads 9 feet or more, everything in the first table is on your list, and width, depth and your swing decide the rest. If it reads at least 8 feet but under 9, your list is the 8 foot section below: the 8' bundle, the R10 and SkyTrak's Studio 8'.

Best golf simulator for a 9 foot ceiling: which one fits your room

Picture a Saturday in March, with rain on the closed garage door. The enclosure stands where you taped it out, its top 6 inches under the lowest joist, and the projector throws a fairway across the screen. You tee a ball up on the turf mat and take the first swing.

Bushnell Launch Pro Simulator Bundle, 10': the full setup for a 12 by 18 foot room

Bushnell's bundle page lists a "Minimum of 12' width, 18' depth, and 9' ceiling height" for the 10' enclosure, and its Sim Fit Check gives the same three numbers. The enclosure is 8'6" tall, so a 9 foot room leaves 6 inches above the frame, by our arithmetic.

• Best for: a 9 foot room at least 12 feet wide and 18 feet deep, bought as one order.
• Skip it if: the room is under 12 feet wide or 18 feet deep, or you want the option to return the enclosure.
• Main compromise: only the launch monitor can go back, with a 20% restocking fee, and you supply the gaming PC.

What this means for you: if your tape reads 12 by 18 under a 9 foot ceiling, this is the one-order route to a full bay. Bushnell says its minimums already "add the room you actually need: ceiling clearance at the top of your swing, width for netting and walls, and depth for the hitting position plus a walkway behind you."

Everything for the bay but the gaming PC arrives in one order. The bundle page's "What's Included" list names the Launch Pro, a 48-piece club marker pack, the enclosure and side net protection. It adds a 5'x5' turf hitting mat, a 1080p projector, a wireless keyboard, a computer cart, a 6' HDMI cable, a power strip and a 30-day Foresight+ trial. As of October 5, 2026, the price is $6,499.99, the same for the 8' and 10' enclosures, with no sale running.

The page also says "GAMING PC IS NOT INCLUDED AND REQUIRED TO POWER SIMULATION SOFTWARE." Bushnell recommends Windows 11 64-bit, an Intel Core i7 or i9 (12th Gen or newer), 16GB of RAM and an RTX 3070 Ti or newer. Budget for that PC on top of the bundle.

After the trial, Foresight+ has a Free tier, Silver at $199 a year and Gold at $599 a year, as of October 5, 2026. Course Pass ($295 a year) and Course Pass PRO ($595) each need Silver or Gold, as of the same date. If your order carries only the 30-day trial, a year of Gold adds $599 to the bundle's $6,499.99 at October 5, 2026 prices, before the PC.

Bushnell's banner says "FREE 30-DAY RETURNS." Its returns page is narrower: the launch monitor is "Returnable within 30 days of shipment with a 20% restocking fee," and "Simulator package components (net, mat, frame, screen, projector) are not returnable." So the enclosure stays with you.

The Launch Pro has a one-year limited warranty, and it "requires internet connection within the United States at least once every 45 days." Our golf simulator packages guide covers the bundle's box list and Bushnell's shipping terms.

Two more lines are worth settling first. Foresight's room guide calls 10 feet the practical minimum for a comfortable full driver swing for most golfers, though it notes 9 feet works for many. Chalk the top of your driver swing at the spot.

The bundle page also promises "a 30-day trial of Foresight+ Silver or Gold," while Bushnell's buyer's guide says its Premium Simulation Bundle "includes 1-year of Gold software package." Ask Bushnell which one your order gets; the club marker count and enclosure length are on the question list below too.

With a clear swing and those answers, the 10' bundle is ready to order.

Bushnell Launch Pro Simulator Bundle, 8': for a room 10 to 12 feet wide

Bushnell lists a "Minimum of 10' width, 18' depth, and 8' ceiling height" for the 8' enclosure. The frame is 7'6" tall, which leaves 18 inches under a 9 foot ceiling, by our arithmetic. It also fits an 8 foot room on Bushnell's figure, covered in the 8 foot section below.

• Best for: a 9 or 8 foot room 10 to 12 feet wide and at least 18 feet deep.
• Skip it if: you have 12 feet of width, since the 10' screen costs the same.
• Main compromise: a smaller screen at the same price, with the same 18 foot depth.

The box, software, warranty and return terms match the 10' bundle, so the enclosure can't go back here either. Bushnell's 8' assembly manual adds, for the side nets, "Please note that an anchor is not provided."

So the choice between the two bundles comes down to width. If your room is 10 to 12 feet wide, get the 8'; if you have 12 feet, get the 10'. Plan where the side nets will anchor before install day.

Bushnell Launch Pro, monitor only: for a bay you build yourself

Bushnell's Launch Pro Buyer's Guide gives a room for a full simulator, "Recommended: 18ft x 12ft x 9ft," and a smaller one for a net, "Recommended: 14ft x 6ft x 7ft," in an older section written for a Net Bundle Bushnell's store no longer lists.

Note the word: Bushnell calls the 9 feet recommended for its premium setup, and publishes no separate ceiling minimum for the monitor itself. With the monitor alone, Bushnell's recommended 9 feet still stands for a full simulator, and your enclosure's height plus its buffer and your own swing all have to fit under it.

• Best for: pairing with an enclosure that fits under your ceiling.
• Skip it if: the unit can't go online at least once every 45 days.
• Main compromise: you buy the enclosure, screen, projector, mat and PC separately.

The manual says to "place upright approximately 2 feet away from the hitting area" and adds, "If you are using a hitting mat, make sure the Launch Pro is raised to the same level as the hitting surface." As of October 5, 2026, the price is $2,999.99, with no sale running. Our Launch Pro and GC3 space requirements guide goes through Bushnell's room advice in more detail.

The same one-year warranty, 30-day return window, 20% restocking fee and 45-day internet check-in apply. So the restocking fee on a return is a fifth of the $2,999.99 price as of October 5, 2026.

Start with the monitor alone if you'd rather size the bay yourself. Paired with a Carl's Place DIY or Pro kit below, it gives you a bay sized to your room. As of October 5, 2026, the DIY 8x10.5 with its Standard screen is $1,174.95. The pair costs less than the bundle's $6,499.99 at October 5, 2026 prices, by our arithmetic, before pipe, a projector and a mat, which the bundle includes, and either route needs a gaming PC.

SkyTrak ST MAX Standard Studio 10' and 8': for a shallower room

SkyTrak's Plan Your Space page gives the Studio 10' a "Minimum Room Size: 11' W / 16' D / 9' H," two feet less depth than Bushnell's bundles ask for. Its ideal room is "12' to 14' W / 17' to 20' D / 9' to 10' H."

• Best for: a 9 foot room 11 to 12 feet wide that is only 16 to 17 feet deep.
• Skip it if: the room is under 11 feet wide (8.5 for the Studio 8'), or you have no computer or tablet to run it.
• Main compromise: a 6-month or 25,000-shot device warranty, and a return fee that may reach 40% once the unit is registered.

Say your basement is 9 feet to the joists, 11 feet 6 inches wide and 17 feet deep. Both Bushnell bundles need 18 feet of depth, so they're out. The Studio 10' fits on all three numbers, and it's our pick for a 9 foot room that's only 16 to 17 feet deep.

The Studio 8' lists "Minimum Room Size: 8.5' W / 15' D / 8' H." The same block adds that "a standard golfer requires at least a 9-foot ceiling and 10 feet of width to safely swing a driver," even though the enclosure is only 7 feet 6 inches tall. With the Studio 8', allow 9 feet up and 10 feet across for a driver. The Studio 10' already lists 9 feet up and 11 across.

SkyTrak's general line is that "a ceiling height of 10' typically offers ample clearance for most golfers, however many golfers say that 9' is enough." The ST MAX user guide says safe ceiling height "depends on your physical height and the length of your club." To fit both left- and right-handed players, SkyTrak suggests "an additional 1' to 2' of width."

As of October 5, 2026, SkyTrak's regular price for the Standard Studio 8' or 10' is $5,495, and a sale was running. The studio includes the ST MAX, "Enclosure, Screen, and Frame," a 5x5 hitting mat, a "ZW350ST Projector" and a 14-day trial; a floor projector mount comes with the 8' only. You supply a computer or tablet.

When we checked on October 2, 2026, SkyTrak's plans ran from $99.99 (Essential) to $599.99 (Elite) a year. A promotion adds a free year of Core (FS), and "You will activate your membership once you receive & register your device."

SkyTrak's FAQ says the ST MAX "is backed by a 6-month warranty or 25,000 shots, whichever comes first." The studio page gives a 30-day return "with a 20% restocking fee," while the FAQ applies "a restocking fee of up to 40%" to a unit that "has been registered." By our reading, registering to claim the free year may count toward the higher fee, so ask SkyTrak before you register.

Confirm before you order: ask SkyTrak in writing which fee applies if you register the ST MAX for the free year and then send the studio back inside 30 days. Budget for the 40% until it answers. If SkyTrak won't say, the Garmin R10 fits a 16 to 17 foot deep room too, at Garmin's 15 feet or 16 by our arithmetic. Garmin listed 30-day returns on garmin.com when we checked on October 2, 2026, and you'd add the screen, enclosure and projector yourself.

With SkyTrak's answer in hand, the Studio 10' is the one to get for that room.

Garmin Approach R10: the lowest price here for 8 and 9 foot ceilings

Garmin's support page says: "Your space must be at least 15 feet long by 8 feet wide by 8 feet high." The R10 goes on the ground "between 6 and 8 feet behind the ball," and the ball should be "at least 8 feet away from the impact screen or net."

• Best for: the lowest price here, and households with left- and right-handed golfers.
• Skip it if: the room is shorter than Garmin's 15 feet, or 16 feet if the unit goes the full 8 feet behind the ball, by our arithmetic.
• Main compromise: it needs less ceiling and more depth, since the radar sits behind the ball.

Garmin's two placement figures add up to 14 to 16 feet, so its 15 feet works only with the unit at the near end of its range, by our arithmetic. Use 16 feet as your number, or set the unit nearer 6 feet behind the ball. The manual adds: "Ensure there is adequate ceiling height and that no objects can obstruct your backswing or follow through."

As of October 5, 2026, the price is $499.99, with no sale running. The box holds the R10, a tripod stand, a phone mount, a carry case, a microUSB cable and documentation. It pairs with a smartphone and the Garmin Golf app.

When we checked on October 2, 2026, Garmin Golf cost $99.99 a year or $9.99 a month after a 30-day trial, and garmin.com listed a one-year warranty and 30-day returns. A screen, enclosure and projector are separate. Even with a year of Garmin Golf on top, the R10 is the low-cost way in at those October 2026 prices, before the screen and enclosure.

Garmin's R10 setup guidance, read September 23, 2026, says "you can use the same alignment regardless of your handedness and no settings need to be changed." If left- and right-handed golfers share the room, that's the R10's edge over the R50 below, by our reading of the R50's setup.

Garmin Approach R50: 9 feet or more, with the unit in front of the ball

Garmin's R50 support page recommends these dimensions "for most users: Ceiling height of 9 feet or more. Distance to the net of 8 feet or more. Space width of 10 feet or more. For dual-handed setups use a space of 13 feet or more." The unit goes "on the ground 1-2 feet in front of the ball so that the ball is between you and the Approach R50." The same page notes that "if the ball is on a tall hitting mat you may need to raise the Approach R50."

• Best for: a 9 foot room 10 feet wide, or 13 if both hands share it, where depth is tight.
• Skip it if: the ceiling is 8 feet.
• Main compromise: the unit sits across the ball from the golfer, so by our reading it moves when a left-handed golfer takes over.

With the unit in front of the ball, the R50 is the Garmin for a 9 foot room where depth is tight. Width is the number to check: 10 feet, or 13 if both hands will use it.

As of October 5, 2026, the price is $4,999.99, with no sale running. The box holds the R50, a carrying case, an AC adapter and power cord, 250 club tracking stickers and documentation. When we checked on October 2, 2026, Garmin's page listed the HDMI cable as "(not included)" and footnoted "Subscription required." Ask Garmin which subscription that means and what it costs, and add an HDMI cable to the order. A screen, enclosure and projector are separate.

Rapsodo MLM2PRO: Rapsodo's blog says 9 feet may suit golfers up to about 5 feet 8 inches

Rapsodo's own figure comes with a height limit. Its 2023 blog says a 9-foot ceiling "might be perfect for you" on one condition: "If you're about 5' 8" and below." It also says "most indoor golf simulators require a clearance space of 9 feet tall minimum to function," and that taller golfers "may need 10 or even 11 feet."

• Best for: golfers about 5 feet 8 inches and shorter, in a 9 foot room with 14.5 to 16.5 feet of depth.
• Skip it if: anyone who'll swing is taller than about 5 feet 8 inches, per Rapsodo's own blog.
• Main compromise: the 9 foot figure is general advice, not a product spec.

The same post's rule of thumb is a ceiling 6 to 9 inches "taller than the height of your shot," and it suggests marking the top of your swing with chalk or tape to check. That chalk mark is the test that decides this one.

For depth, Rapsodo's FAQ says "A little more than 14 total feet is needed. First, 8 feet is needed from ball to the net. Then, the MLM2PRO requires another 6.5-8.5 feet behind the ball." Those parts add up to 14.5 to 16.5 feet, by our arithmetic. Measure for 16.5 so the unit can sit anywhere in Rapsodo's range.

As of October 5, 2026, Rapsodo's regular price is $699.99, and a sale was running. The box holds the MLM2PRO, a tripod, a carrying case, a charging cable and 3 RPT balls, with a "45-Day Trial Premium Membership." Premium cost $199.99 a year when we checked on October 2, 2026.

Rapsodo offers "a 30-day money-back guarantee on all hardware orders placed on our web-store," and "We do not refund membership subscriptions." So if the room doesn't work out, hardware bought on Rapsodo's web store can go back inside 30 days, and a paid membership won't be refunded.

If everyone who'll swing clears the chalk test, the MLM2PRO is the one to get.

Carl's Place DIY enclosure kit: four sizes fit under 9 feet

Carl's DIY spec sheet lists outer heights. Four of the six standard sizes fit a 9 foot room with Carl's buffer: the 7.7x10 and 7.7x13 (95.8 inches tall) and the 8x8 and 8x10.5 (100 inches).

• Best for: a 9 foot room built around a floor launch monitor such as the Launch Pro, ST MAX, R10, R50 or MLM2PRO.
• Skip it if: your ceiling is 8 feet, since no standard size fits with Carl's buffer.
• Main compromise: you source and cut the pipe, or pay for the pipe kit.

Carl's sizing guide says "Give yourself an absolute minimum of 2-3 inches buffer space from the height you have available." At 100 inches plus 3, the 8x10.5 needs 103 inches, which leaves 5 inches to spare under a 108 inch ceiling, by our arithmetic. The 8.5x11.5 (107.5 inches) and 9x12 (112 inches) don't fit.

Carl's general room advice is roomier than its frames: "we recommend at least 14 feet of width by 18 feet of depth, with ceilings that reach 9-10 feet high." The product page recommends "standing a minimum distance of 10 to 12 feet away from the screen" and says "12" at the rear is recommended. A minimum of 8.25" is required to fit the rear fittings."

As of October 5, 2026, the prices with the Standard screen are $999.95 (8x8), $1,149.95 (7.7x10), $1,174.95 (8x10.5) and $1,239.95 (7.7x13), with no sale running. The 8x10.5 with the Premium screen is $1,598.95 as of the same date. The kit includes the impact screen, the BlackStop enclosure, corner fittings, fasteners and zip ties, and "Pipes sold separately," so you buy 1-inch EMT or Carl's Pipe Framing Kit. A launch monitor, projector, mat and PC are separate.

Carl's Place has "a 30-day return policy on most items," returns need approval first, and "Return shipping charges are the responsibility of the sender." Changing or canceling a custom-size order, when Carl's can honor the request, carries "a restocking fee of up to 30%." We found no enclosure warranty from Carl's Place itself; its Terms of Sale pass through manufacturers' warranties.

Order a standard size if you want the return window in play, and ask Carl's Place in writing who warrants the enclosure. With that answer, the 8x10.5 is ready to order around whichever floor unit you chose above.

Carl's Place Pro enclosure kit: only the 8x10.5 fits under 9 feet

Carl's Pro spec sheet puts the 8x10.5 frame at 102 inches tall, and the Pro page says "You need at least 2" above the enclosure for assembly, 2-3" on each side, plus 12" at the rear is recommended." Carl's sizing guide's general figure is 2 to 3 inches above the frame. That's 104 inches on the Pro page's figure and 102 plus 3 on the guide's, both under a 108 inch ceiling, by our arithmetic. The next size up, the 8.5x11, is 107 inches tall and needs 109.

• Best for: a heavier 2-inch frame at 8x10.5 in a 9 foot room.
• Skip it if: you want any Pro size above 8x10.5 under a 9 foot ceiling.
• Main compromise: nearly three times the price of the DIY 8x10.5 with the Standard screen, or about twice with the Premium screen, by our arithmetic.

As of October 5, 2026, the 8x10.5 is $3,409.95 with a 5' deep frame and the Premium White screen, or $3,784.95 at 8' deep. With the High-Contrast Gray screen, as of the same date, it is $3,764.95 (5') or $4,174.95 (8'). No sale was running.

The kit includes the enclosure, the screen, "All the fittings you need to build your frame (pipes sold separately)" and a custom assembly diagram. It uses 2-inch EMT, which Carl's says "can be difficult to source locally," or the Pipe Framing Kit, which ships freight. Returns follow the same Carl's Place policy as the DIY kit.

Get the Pro if you want the heavier 2-inch frame; on ceiling fit alone, the DIY 8x10.5 does the same job for less.

Why do Trackman's Mid and High iO, Uneekor's overhead units and Carl's Curved miss a 9 foot room?

Under a flat 9 foot ceiling, the one overhead unit here rated for that height is Trackman's Low iO. Even then, Trackman's setup table recommends 9'2" for it, and your mat's thickness counts against it. The other overhead units, and Carl's Curved kit in its standard sizes, need more than 9 feet on their makers' own figures, so plan on a 10 foot room for them. If one is on your list, each heading below names the number that decides it and what to ask before you order.

Trackman iO: 9 feet 4 inches, or 8 feet 10 inches for the Low version

Trackman's iO setup article says: "The minimum room height should be 9 feet 4 inches (2.85 meters). Ideally, the mounting height is 9 feet 8 inches (2.95 meters) above the hitting surface." That figure comes with a condition: "Depending on which unit type you have, the height will differ."

Trackman's height dimensions article lists three iO versions, each "defined by the distance from the turf surface to the ceiling." The Low version covers "270 to 290 cm (8 feet 10 inches to 9 feet 6 inches)" and is for the iO only, not the iO DUO. The Mid runs 9 feet 4 inches to 10 feet, and the High 9 feet 10 inches to 10 feet 6 inches.

On the Mid figure, a 9 foot room is 4 inches short. A Low iO takes in a 9 foot room, though the setup article's table recommends 9'2" for it. A hitting surface thicker than about 1.7 inches drops a 9 foot room below the Low minimum, by our arithmetic. If a Trackman quote is on the table, ask which version it covers, and give Trackman your ceiling height, measured from the top of the mat.

Trackman's product page says "there are no minimum distance requirements in front of or behind the ball," while the support article asks for "a minimum distance of 8 feet 2 inches (2.5 meters) from the tee to the screen." Leave the 8 feet 2 inches.

As of October 5, 2026, Trackman lists home solutions "starting at USD 13,995," sold by quote. Its support page for the older Trackman 4 lists "Minimum : 9ft."

Uneekor EYE XO2 and EYE XR: 10 feet on the product pages

Both product pages say: "We recommend a minimum room size of 13 ft wide × 16 ft deep × 10 ft high." Uneekor's support page says "a minimum height of 9 ft is required" for overhead units, but it measures that height "from the top of the hitting area (intersection of the red lines during calibration) to the bottom of the launch monitor's mounting bracket."

By our reading, the bracket and the unit then sit above that point, so a flat 9 foot ceiling can't put the bracket in Uneekor's range. That makes an overhead Uneekor a 10 foot room purchase. If you mount one, follow Uneekor's mounting instructions. Its help center says to "attach the bracket directly to a joist in your ceiling."

As of October 5, 2026, the EYE XO2 is $10,999. As of the same date, the EYE XR's regular price is $6,999, and a sale was running.

Uneekor EYE MINI LITE: no ceiling figure at all

The MINI LITE's product page says only "Ensure you have enough space to swing a driver safely," and its manual gives no ceiling figure. The 9 feet on Uneekor's support page is for overhead units. The same page's general advice is "a space of at least 13 ft × 15 ft × 10 ft to account for the average user."

With no published minimum and a 10 foot general figure, it isn't a 9 foot pick here. As of October 5, 2026, its regular price is $2,750, and a sale was running. If it's on your list anyway, ask Uneekor for a ceiling figure in writing first.

Foresight GC3: 10 feet in Foresight's own room guide

The GC3's product page gives no ceiling figure. Foresight's room guide, dated July 6, 2026, lists "10 feet (3.0m)" with the note "9 feet works for many; 8.5 feet for irons only." It adds: "For most golfers, 10 feet of ceiling height is the practical minimum for a comfortable full driver swing."

As of October 5, 2026, the GC3 is $6,999, with no sale running. If Foresight's software is what draws you, the Launch Pro runs Foresight+ too. Bushnell lists 9 feet for its bundle, but Foresight's 10 feet is about the driver swing, so chalk the top of yours at the spot first. The confirm section below has the question to ask Bushnell.

See the 10' bundle at Bushnell Golf

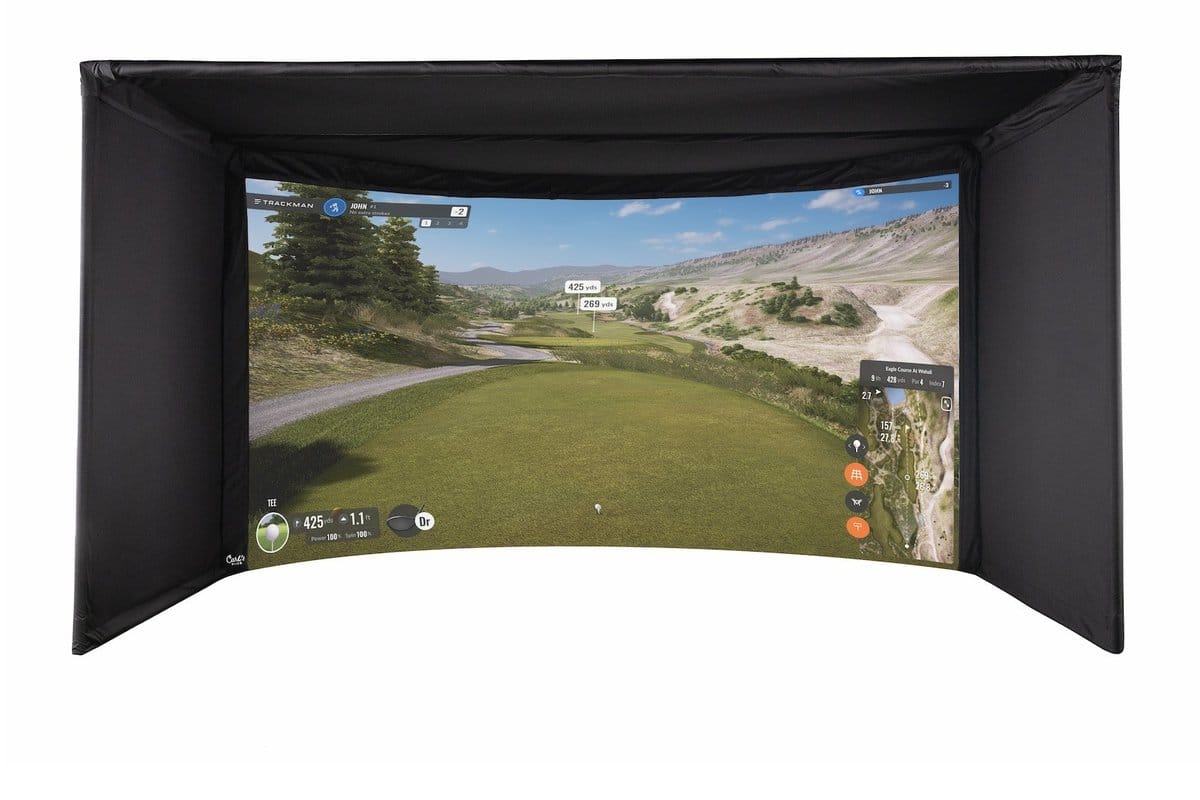

Carl's Place Curved enclosure: about 9 feet 6 inches in standard sizes

The smallest standard frames on Carl's Curved Golf Enclosure Kit spec sheet, the 9x14 and 9x15, are 108 inches tall. Carl's FAQ asks for "6 inches above the enclosure," which makes 114 inches, or 9 feet 6 inches, by our arithmetic.

The same FAQ says "The smallest space that can accommodate Carl's Curved Golf Enclosure Kit is 9 ft high x 12.5 ft wide x 18 ft deep." By our reading, that matches only the bottom of Carl's custom range ("Height: 102" to 120""), since 102 inches plus 6 is 108.

For a curved screen under 9 feet, ask Carl's Place for a custom quote and read the return terms first: Carl's says enclosures in untraditional dimensions are not returnable. As of October 5, 2026, the standard Curved kit runs from $4,894.95 to $6,629.95, with no sale running. With 10 feet, the 9x14 and 9x15 fit, and the 10 foot section below has the numbers.

Golf simulator with an 8 foot ceiling: which launch monitors still work

On the makers' own figures, three launch monitors work under an 8 foot (96 inch) ceiling: the Garmin R10, the Bushnell Launch Pro in Bushnell's 8' bundle and SkyTrak's ST MAX in the Studio 8'. The Studio 8' carries SkyTrak's own 9 foot caveat for drivers.

• Bushnell Launch Pro Simulator Bundle, 8': "Minimum of 10' width, 18' depth, and 8' ceiling height." The 7'6" frame leaves 6 inches, by our arithmetic.
• Garmin Approach R10: "at least 15 feet long by 8 feet wide by 8 feet high."
• SkyTrak ST MAX Studio 8': "Minimum Room Size: 8.5' W / 15' D / 8' H," though the same block says "a standard golfer requires at least a 9-foot ceiling and 10 feet of width to safely swing a driver."
• Bushnell Launch Pro with a net: "Recommended: 14ft x 6ft x 7ft," from an older buyer's guide section for a Net Bundle Bushnell no longer sells. That's a net setup with no screen.

These don't fit 8 feet on their makers' figures: the Garmin R50 (9 feet), the Rapsodo MLM2PRO (9 feet on Rapsodo's blog), SkyTrak's Studio 10' and 12' (9') and Bushnell's 10' bundle (9'). Neither do the Trackman 4 (9 feet), the Trackman iO (8 feet 10 inches even for the Low version) or Uneekor's overhead units (10 feet on the product pages). Foresight's room guide puts 8.5 feet at "irons only."

No standard Carl's Place DIY or Pro kit fits an 8 foot room with Carl's buffer. The smallest frame is 95.8 inches tall, and 2 to 3 inches more makes 97.8 to 98.8 inches, by our arithmetic. Carl's sizing guide also says "we don't recommend going smaller than 96" high." Under 8 feet, Carl's offers custom sizing only.

So at 8 feet, two makers' own lines put a driver in doubt. SkyTrak says a standard golfer needs at least a 9 foot ceiling for a driver, and Foresight rates 8.5 feet for irons only. Chalk your driver swing at the spot first. If it clears, the 8' bundle is the one-order route at 8 feet, and the R10 is the budget one.

Golf simulator for a 10 foot ceiling: what opens up

Everything in the 9 foot table fits a 10 foot room, and several more products join it.

• Trackman iO: its 9'4" minimum and 9'8" ideal mounting height both fit.
• Uneekor EYE XO2 and EYE XR: the product pages' 13 by 16 by 10 foot room fits at exactly 10 feet. Uneekor's support page wants 15 feet of width for golfers 6 feet or taller.
• Foresight GC3: 10 feet is Foresight's "practical minimum for a comfortable full driver swing."
• Rapsodo MLM2PRO for taller golfers: Rapsodo says taller golfers "may need 10 or even 11 feet."
• Carl's Place Curved 9x14 and 9x15: 108 inches plus 6 is 114, by our arithmetic. Carl's FAQ also lists 18 feet of depth, and the 9x14 frame is 166 inches (13 feet 10 inches) wide before any side buffer.
• More Carl's Place sizes: every DIY size (the tallest, 9x12, is 112 inches plus 3) and the Pro up to 9x12 (114 inches plus 2).

The Curved 9.5x14.5 and 9.5x16 frames are 114 inches tall, so with 6 inches above they land exactly at 120. Carl's sizing guide asks for "closer to 6-7 inches" on the Curved kit, which puts them over. Still too tall for 10 feet: SkyTrak's Studio 13' Deep (10'6"), Carl's Pro 10x13 and 10x15.5 (123 inches) and Carl's Curved 10x15 and 10x17 (120 inches plus 6).

If you have the 10 feet, more than 13 feet 10 inches of width and 18 feet of depth, the Curved 9x14 or 9x15 is the curved screen on this page that fits. As of October 5, 2026, it starts at $4,894.95.

What to confirm with the makers before you order

Each maker below gives more than one number for the same thing, in its own documents or against a partner's. Settle each one in writing before you pay, and you'll order knowing which number your room has to meet. The list at the end of this section collects the questions, ready to paste into an email.

Bushnell says 9 feet; its partner Foresight says 10

Bushnell lists a 9' ceiling minimum for its 10' bundle and 8' for its 8' bundle. Foresight's word carries weight here: the Launch Pro runs Foresight+ software, and Bushnell's warranty line sends you to "the Foresight Sports warranty page for complete details."

Foresight's own room guide, dated July 6, 2026, calls 10 feet "the practical minimum for a comfortable full driver swing" and gives 8.5 feet as "irons only." It adds: "Taller players or those with upright swings need more." Foresight's older SIM IN A BOX Play assembly guide, read September 27, 2026, lists a "MINIMUM OF 12' WIDTH, 18' LENGTH, AND 9' CEILING HEIGHT," so Foresight's own documents give both numbers.

The same July guide says "Foresight's SIM IN A BOX Play 10' fits in spaces as narrow as 10 feet wide," where Bushnell lists a 12' minimum width for its own 10' enclosure. Plan on Bushnell's 12 feet, since it's the maker's figure for the enclosure you'd buy.

For the ceiling, your own swing settles it. Ask Bushnell whether its 9 foot minimum assumes a full driver swing, and chalk the top of yours at the spot. If the mark doesn't clear, Foresight's guide rates 8.5 feet for irons, so the room still takes irons at 9 feet, and a driver needs more height. If the mark clears and Bushnell's answer backs its 9 feet, the 10' bundle is ready to order.

Check today's 10' bundle price at Bushnell Golf

Uneekor: three versions of one ceiling height

Uneekor's EYE XO2 and EYE XR product pages give a 10 foot minimum room height, and the XO2's spec list says "Optimal Height When Mounted 10ft." Its support page says "a minimum height of 9 ft is required, as they are designed to be mounted between 9 ft - 10 ft off the ground," measured to the bottom of the bracket.

The manuals, read October 3, 2026, say "between 9 - 10 feet for the ceiling height." The support page also gives 15 feet of depth for its general room, where the product pages give 16.

Plan on the product pages' 10 feet and 16 feet, and ask Uneekor which figure applies under a flat ceiling. In a 9 foot room, the floor units in the picks section avoid the question.

SkyTrak Studio 8': an 8 foot minimum and a 9 foot driver line

The Studio 8' block on SkyTrak's Plan Your Space page lists an 8' minimum height and 8.5' minimum width. Then it says a standard golfer needs "at least a 9-foot ceiling and 10 feet of width to safely swing a driver." The studio page gives the Studio 8 a height of "7 ft 5 in," while Plan Your Space says "7'6"." The return-fee question is in the SkyTrak block above and on the list below.

Plan on SkyTrak's driver line until SkyTrak answers in writing. If it won't, the Garmin R10 above fits a 16 to 17 foot deep room too. With SkyTrak's answer, the Studio 10' is ready to order for a 9 foot room that deep.

See the Standard Studio at SkyTrak

Carl's Place Curved: the FAQ, the spec sheet and four buffers

The Curved FAQ's smallest space, "9 ft high x 12.5 ft wide x 18 ft deep," is smaller than any standard frame on Carl's own spec sheet, where the smallest is 108 inches tall and 166 inches wide. The space to leave above an enclosure appears four ways across Carl's pages: "2-3 inches" (sizing guide, general), "at least 2"" (Pro page), "6 inches above the enclosure" (Curved FAQ) and "closer to 6-7 inches" (sizing guide, Curved).

Plan on the larger Curved figure, 6 to 7 inches above the frame, and ask Carl's Place which buffer applies to the size you're ordering. Under a 9 foot ceiling, the DIY 8x10.5 avoids the question: 100 inches plus Carl's 2 to 3 stays under 108.

Smaller conflicts worth knowing

Each of these contradictions is on the question list below. For the depth lines, plan on the larger number.

• Bushnell returns: the site banner says "FREE 30-DAY RETURNS," and the returns page says package components "are not returnable."
• Bushnell software trial: the bundle page includes "a 30-day trial of Foresight+ Silver or Gold," while the Launch Pro Buyer's Guide says its Premium Simulation Bundle "includes 1-year of Gold software package."
• Bushnell club markers: the bundle page lists a "48pc Club Marker Pack," and the Launch Pro manual a "28 Club Marker Pack."
• Bushnell enclosure length: "17' Long" in the page body against "Height 8'6" x Width 10' x 5'4"" on the spec tab.
• Garmin R10 depth: "at least 15 feet long," against 8 feet to the net plus 6 to 8 feet behind the ball, which is 14 to 16 feet by our arithmetic.
• Rapsodo depth: "A little more than 14 total feet," against its own 8 feet plus 6.5 to 8.5 feet, which is 14.5 to 16.5 feet by our arithmetic.
• Trackman iO height: "The minimum room height should be 9 feet 4 inches" in the setup article, against a Low version rated "270 to 290 cm (8 feet 10 inches to 9 feet 6 inches)" in the height dimensions article.
• Trackman iO distance: "no minimum distance requirements" on the product page, against 8 feet 2 inches from tee to screen in the support article.

The questions to send

Send each maker only the questions for the product you're ordering. Each line is written so you can paste it into an email.

1. Bushnell: Does the 9 foot ceiling minimum for the 10' bundle assume a full driver swing?
2. Bushnell: Which software comes with the bundle, a 30-day Foresight+ trial or a year of Gold?
3. Bushnell: Which parts of the bundle can be returned, and with what fee, given the "FREE 30-DAY RETURNS" banner?
4. Bushnell: Is the 10' enclosure 17 feet long, as the page body says, or 5 feet 4 inches, as the spec tab says?
5. Bushnell: How many club markers come in the box, 48 or 28?
6. SkyTrak: If the ST MAX is registered to start the free year of Core and the studio goes back within 30 days, is the restocking fee 20% or up to 40%?
7. SkyTrak: Is the Studio 8 frame 7 feet 5 inches or 7 feet 6 inches tall?
8. Garmin: Does the R10's 15 foot minimum assume the unit 6 feet behind the ball?
9. Garmin: Which subscription does the R50 page's "Subscription required" footnote mean, and what does it cost?
10. Rapsodo: How much depth does the MLM2PRO need with the unit 8.5 feet behind the ball?
11. Trackman: Which iO version does this quote cover, and what ceiling height does it need, measured from the hitting surface?
12. Trackman: How far from the screen must the tee be: no minimum, or 8 feet 2 inches?
13. Uneekor: Under a flat ceiling, is the minimum for the EYE XO2 and EYE XR 10 feet or 9 feet to the bracket?
14. Carl's Place: Which buffer above the frame applies to this size: 2 to 3 inches, at least 2, or 6 to 7?
15. Carl's Place: Who warrants the enclosure, Carl's Place or the manufacturer?
16. Carl's Place: Which Curved frame fits the FAQ's 9 by 12.5 by 18 foot space?

Which one should you order for your room?

Find the line that matches your tape measure, then order the pick it names once its maker has answered your questions.

• Your room is 9 feet high and at least 12 by 18 feet: the Bushnell Launch Pro Simulator Bundle, 10'.
• Your room is 8 or 9 feet high and 10 to 12 feet wide: the Bushnell Launch Pro Simulator Bundle, 8'.
• You'd rather build your own bay under 9 feet: the Bushnell Launch Pro with a Carl's Place DIY enclosure kit or the Carl's Place Pro kit, 8x10.5.
• Your 9 foot room is only 16 to 17 feet deep: the SkyTrak ST MAX Standard Studio 10'.
• Your 9 foot room is 10 feet wide, or 13 if both hands share it, and depth is tight: the Garmin Approach R50.
• Everyone who'll swing is about 5 feet 8 inches or shorter, and the chalk mark clears: the Rapsodo MLM2PRO, with 14.5 to 16.5 feet of depth.
• You want the lowest price into an 8 or 9 foot room: the Garmin Approach R10.
• You have 10 feet, more than 13 feet 10 inches of width and 18 feet of depth, and want a curved screen: the Carl's Place Curved Golf Enclosure Kit, 9x14 or 9x15.

If your room falls between these lines, our golf simulator room size guide covers width and depth for more launch monitors.

Imagine a January evening in the basement you measured. The Carl's Place frame stands at the end of the room, its top 8 inches under the joists, with the impact screen across the front. You tee a ball up on the mat and take a swing.

Before you order: measure your 9 foot room

Take these in order. Each one rules products in or out.

1. Measure the lowest point above where you'll swing. Bushnell's Sim Fit Check says "Measure your lowest ceiling point (joists, ducts, lights) and the clear floor area, not wall-to-wall." Carl's Place lists "doors, carpet, turf, pipes, soffits, garage door openers, and rails."
2. Measure from the hitting surface. Trackman and Uneekor measure overhead heights from the hitting area. A mat or platform raises that surface, so subtract its height from the ceiling; that's our arithmetic, since no maker publishes it as a rule. Garmin says a tall mat may mean raising the R50, and Bushnell says to raise the Launch Pro "to the same level as the hitting surface."
3. Check your own swing. Rapsodo suggests marking the top of the swing with chalk or tape. SkyTrak says safe ceiling height "depends on your physical height and the length of your club." Before anyone hits a ball, make sure every golfer who'll use the room can swing freely there.
4. Add the enclosure height plus the buffer above it: 2 to 3 inches for Carl's DIY, at least 2 for the Pro and 6 for the Curved. Bushnell's frames are 7'6" (8') and 8'6" (10'); SkyTrak's Studio 8 is 7'5" or 7'6" depending on the page, and the Studio 10 is 8'6".
5. Check depth for your launch monitor: 18 feet for Bushnell's bundles, 16 for SkyTrak's Studio 10', 15 for the Garmin R10 (with the unit 6 to 8 feet behind the ball) and 14.5 to 16.5 for the MLM2PRO by our arithmetic. Carl's Place recommends standing 10 to 12 feet from the screen. If you have 16 or 17 feet but not 18, see the Standard Studio at SkyTrak.
6. Check width: 10 feet for Bushnell's 8' bundle and 12 for the 10'; 8.5 feet for SkyTrak's Studio 8' and 11 for the Studio 10', plus 1 to 2 feet for both hands; 8 feet for the Garmin R10; 10 feet for the R50, 13 for both hands. If your room is 10 to 12 feet wide, see the 8' bundle at Bushnell Golf.
7. If the projector goes on the ceiling, plan its outlet too. Our golf simulator electrical guide covers where the makers put it.
8. Run the numbers through Bushnell's Sim Fit Check or our free Golf Simulator Room Planner.
9. Order the pick your numbers point to, and keep each maker's written answers with your order. For a room at least 12 by 18 feet under a 9 foot ceiling, check today's 10' bundle price at Bushnell Golf.

Common questions

Can you have a golf simulator with a 9 foot ceiling?

Yes, on several makers' own figures. Bushnell lists a 9' minimum for its Launch Pro Simulator Bundle with the 10' enclosure and 8' for the 8', SkyTrak lists 9' for its ST MAX Studio 10', and Garmin recommends 9 feet or more for the Approach R50 and 8 feet for the R10. Uneekor's overhead EYE XO2 and EYE XR list 10 feet on their product pages, so those don't fit. Trackman's iO depends on the version: its setup article asks for 9 feet 4 inches, while its height article rates a Low iO for 8 feet 10 inches to 9 feet 6 inches.

How high should a ceiling be for a golf simulator?

The makers publish 8 to 10 feet. SkyTrak says 10 feet "typically offers ample clearance for most golfers, however many golfers say that 9' is enough," and Foresight's room guide calls 10 feet the practical minimum for a full driver swing while noting that 9 feet works for many. Rapsodo says 9 feet "might be perfect" if you're about 5'8" or shorter, and that taller golfers "may need 10 or even 11 feet."

Can you have a golf simulator with an 8 foot ceiling?

Three makers publish an 8 foot figure: Garmin for the Approach R10, Bushnell for its Launch Pro Simulator Bundle with the 8' enclosure, and SkyTrak for its ST MAX Studio 8'. SkyTrak's same page says a standard golfer needs at least a 9 foot ceiling to swing a driver. Foresight's room guide puts 8.5 feet at "irons only."

What is the best golf simulator for a low ceiling?

On the makers' figures, a floor launch monitor inside an enclosure no taller than 8'6". Bushnell's 8' bundle, with a 7'6" frame, and the Garmin R10 both publish 8 foot figures. Overhead units usually need more height: Trackman's iO asks for 9 feet 4 inches in its setup article (8 feet 10 inches for its Low version), and Uneekor's overhead units list 10 feet on their product pages.

What ceiling height does a garage golf simulator need?

The same makers' minimums apply, measured at the lowest point. Bushnell says to measure your "lowest ceiling point (joists, ducts, lights)," and Carl's Place lists garage door openers and rails among the things to measure under. In a garage, that can mean measuring under the door track or opener rather than the ceiling surface.

Your next step

Tonight, take three numbers where you'd swing: floor to the lowest thing overhead (subtract your mat's thickness later), wall to wall, and the full depth. Note anything that hangs down, the garage door rail included.

The free Golf Simulator Room Planner turns them into a worksheet: twelve measurements to take before you shop, a table of published room minimums, a depth worksheet, and left- and right-handed setups. Its table lists the launch monitor makers' own figures, which can differ from the enclosure minimums in this guide.

Get the free Golf Simulator Room Planner

More golf room guides are in our guides index.

We read the makers' own documents, checked September 23 to October 5, 2026, and did not set up or test these simulators. This is general information, not construction, electrical or safety advice, so follow each maker's installation and mounting instructions and local authority requirements. Home Performance Guide earns a commission on our Bushnell Golf and Carl's Place links, at no extra cost to you. Other makers' links earn us nothing (affiliate disclosure, editorial standards).
